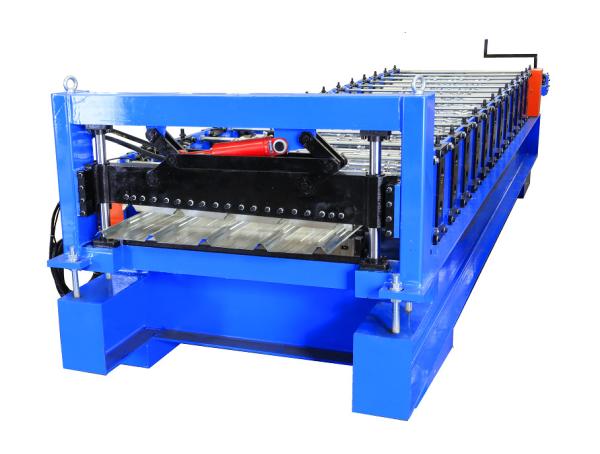

Corrugated Steel Panel Roll Forming Machine Hydraulic Cutting CE ISO Certificated

Brand Name : BMS

Model Number : YX17.5-75-825

Place of Origin : Xiamen，China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50sets/month

Packaging Details : Nude packing in the container suitable for long term transportation.

Delivery Time : 45days

Working material : galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)

Thickness : 0.27mm and 0.32mm

Yield strength : 245-550Mpa

Decoiler : Manual/Hydraulic for options

Housing : H350 beam

Side wall thickness : 18mm

Shaft : 75mm/85mm

Forming station : 18 steps

Cutter material : Cr12Mov, Heat treatment

Output : about 12-18meters per minute

Warranty : 12 Months

Contact Now

YX17.5-75-825 corrugated steel panel roll forming machine

Working material	galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)
Thickness	0.27mm and 0.32mm
Yield strength	245-550Mpa
Decoiler	Manual/Hydraulic for options
Housing	H350 beam
Sidewall thickness	18mm
Shaft	75mm/85mm
Forming station	18 steps
Cutter material	Cr12Mov, Heat treatment
Output	about 12-18meters per minute
Warranty	12 Months

1. Main features of YX17.5-75-825 Corrugated panel roll forming machine

The advantages of YX17.5-75-825 Corrugated roof panel forming machine are as follows:

1. Products widely used in a modern factory, such as a workshop,4S auto shop,

is a new popular roof panel.

2. Easy operation, low maintenance cost

2. Other detailes of YX17.5-75-825 Corrugated roof panel roll forming machine

Suitable for material with thickness 0.4-0.8mm

Shafts manufactured from 45#, Main shaft diameter=φ75mm, precision machined

Motor driving, Gear chain transmission, 19 rollers to form

Main motor=5.5KW, Frequency speed control. Forming speed of approx.15-20m/min

PLC Control System (Touch screenbrand: German Schneider Electric/Taiwan WEINVIEW,

Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English
