Thickness 1 . 5 - 3 . 5mm Yield Strength 245-550Mpa Purlin Roll Forming Machine
Parameter
| | Item | Parameters |
| 1 | Type | CZ100-350 |
| 2 | Thickness | 1.5-3.5mm |
| 3 | Forming Speed | 18-20m/min |
| 4 | Yield strength | 245-550Mpa |
| 5 | Main motor | 30 KW |
| 6 | Hydraulic Power | 7.5 KW |
| 7 | Roller | Cr12 |
| 8 | Housing | H450 |
Main features
The advantages of CZ interchangeable purlin machine are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.Patented universal cutter,no need changing cutter for different size.
3.Thickness range: 1.5-3.5 mm, Width range: 100-350 mm
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
Main Machine
Finely Control, punching and length error within 1mm
Hydraulic pre-cutter
Rollers manufactured from high quality mold steel Cr12, CNC lathes, Heat Treatment.
with black treatment for options.
With feeding material guide, body frame made from 450# H type steel by welding
Suitable for material with thickness 1.5-3.5mm
Shafts manufactured from 45#,Main shaft diameter=φ105mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=30KW , Frequency speed control. Forming speed: 18-20m/min
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

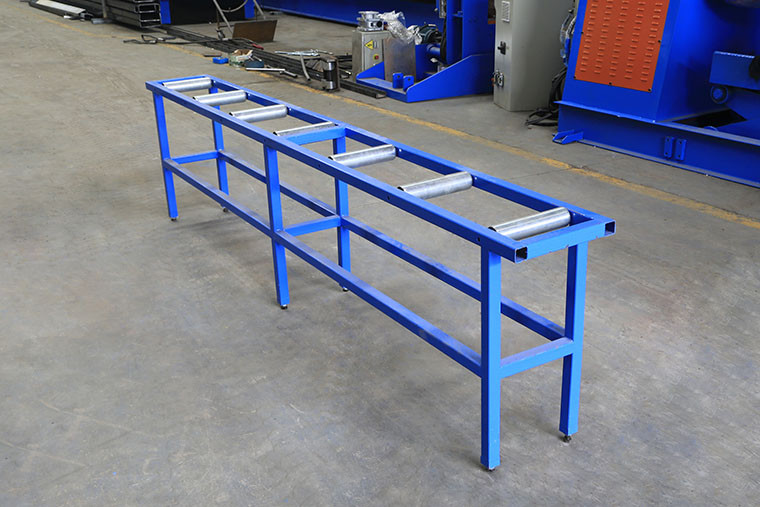

Exit Rack
PLC Control System
Control the quantity and cutting length automatically.Input the production date(production batch,Pcs,length,etc.)on the touch screen.
It can finish the production automaticlly Combined with: Plc. Inverter. Touch Screen. Encoder. etc
Cut-to-length tolerance≤±2mm
Control Voltage24V
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
After-sale service
1. The warranty is two years after the client receives the machine Within two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in the clients factories with extra cost.
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
