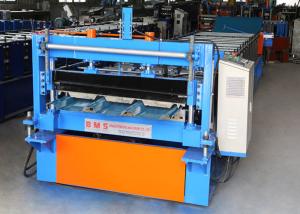

0 , 35 - 0 , 8mm Housing UseH400 Beam Roof Panel Roll Forming Machine
Profile Drawing
Parameter
| | Item | Parameters |
| 1 | Type | YX35-117-1000 |
| 2 | Thickness | 0.35-0.8mm |
| 3 | Forming Speed | 18-20 m/min |
| 4 | Yeild Strength | 345-550Mpa |
| 5 | Servo Motor Power | 7.5 KW |
| 6 | Hydraulic Power | 3 KW |
| 7 | Roller | 45# steel |
| 8 | Weight | about 8T |
Material
Effective Width:1000mm
Feeding Width:about 1220mm
Material Thickness:0.35-0.8mm
Applicable Material:Galvanized Sheet(GI),Cold Roll Steel(CRC) with yield strength 345-550Mpa
Work follow
Decoiler→Manual Pre-cutter→Guide Feeding→Rolling Forming System →Hydraulic Post Cutter→Exit Rack
Decoiler
Manually decoiler: one set.Un-powered,manually control steel coil inner bore shrinkage and stop
Max feeding width: 1250mm, coil ID range 508mm±30mm,Max capacity: 7T
Main Machine

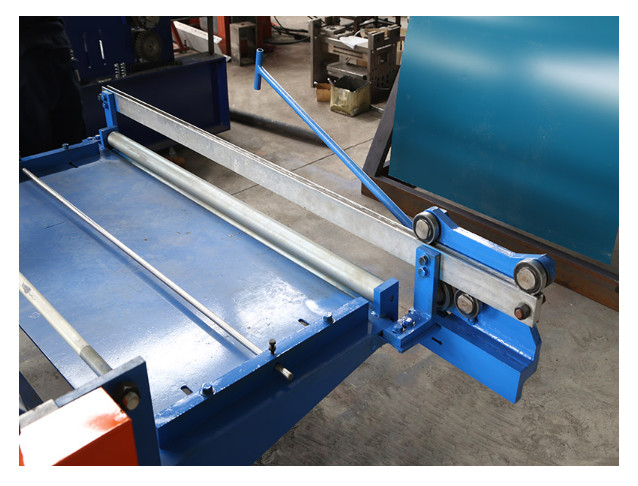

With manual pre-cutter for easy operation and save material:
With feeding material guide,body frame made from H450 type steel by welding.Side wall thickness:Q235 t18mm
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment,Hard Chrome Coated. with thickness0.04mm,surface with mirror treatment(for longer life and anti-rust).
Main shaft diameter=φ85mm round steel, precision machined Motor driving, Gear chain transmission, 18 steps to form. Main motor=7.5KW, Frequency speed control.
Post to cut,stop to cutting,Two pieces type of cutting blade design,no blanking.Cutting tool material: Cr12MoV(=SKD11,with at least one million times of cutting lives)Heat treatment to HRC 58-62 degree,Hydraulic motor: 3KW .The cutting power is provided by the main engine hydraulic station.
PLC Control System
Control the quantity and cutting length automatically.Input the production date(production batch,Pcs,length,etc.)on the touch screen.
It can finish the production automaticlly Combined with: Plc. Inverter. Touch Screen. Encoder. etc
Exit Rack
Un-powered,Three units,with rollers on it for easy movement.
Prouduct show
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
After-sale service
1. The warranty is 24 months after the client receives the machine Within 24 months, we will courier the replacement parts to the client free of charg.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in the clients factories with extra cost.
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
