Thickness 0 , 4 - 0 , 8mm Body Frame 350H C Purlin Forming Machine

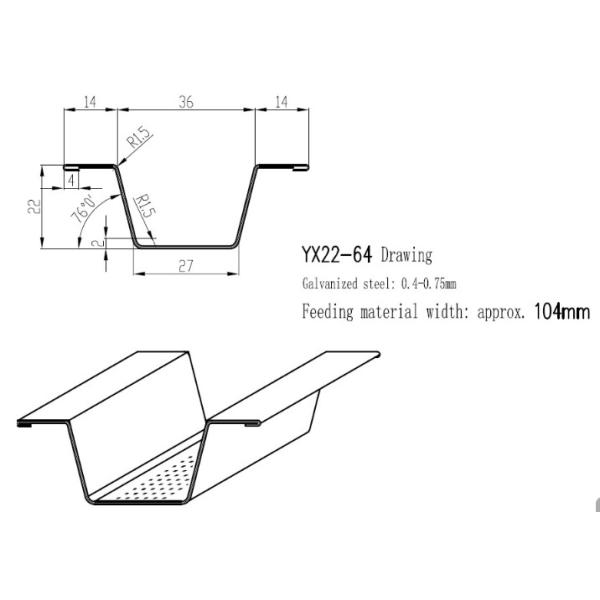

Profile Drawing
Parameter
| | Item | Parameters |
| 1 | Type | YX22-64 |
| 2 | Thickness | 0.3-0.8mm |
| 3 | Forming Speed | 18m/min |
| 4 | Forming station | 16 steps |
| 5 | Main motor | 7.5 KW |
| 6 | Hydraulic Power | 5.5 KW |
| 7 | Shaft | 45# |
| 8 | Body Frame | H350 |
Main features
The advantages of single size C purlin roll forming machine are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Decoiler
Manually decoiler: one set.Un-powered,manually control steel coil inner bore shrinkage and stop
Max feeding width: 500mm, coil ID range 470±30mm,Max capacity:3Ton
With 3 tons hudraulic decoiler for option

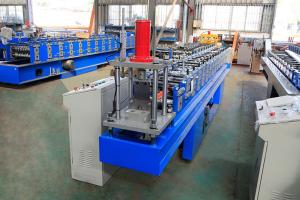

Main Machine
encoder
Suitable for material with thickness 0.4-0.8mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

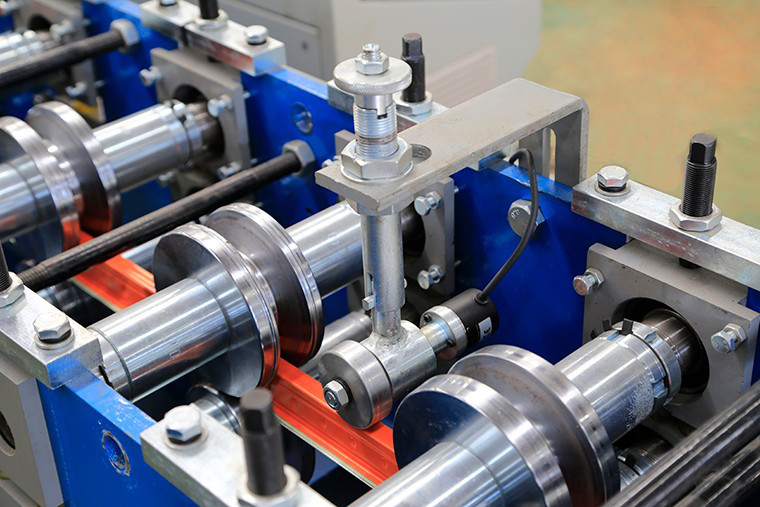

Motor driving,Gear chain transmission, 14 rollers to form
Main motor=7.5KW , Frequency speed control. Forming speed approx.18m/min
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 350# H type steel by welding
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa
Product Show
Exit Rack
PLC Control System
Control the quantity and cutting length automatically.Input the production date(production batch,Pcs,length,etc.)on the touch screen.
It can finish the production automaticlly Combined with: Plc. Inverter. Touch Screen. Encoder. etc
Cut-to-length tolerance≤±2mm
Control Voltage24V
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
After-sale service
1. The warranty is one year after the client receives the machine
Within one year, we will courier the replacement parts to the client free of charg.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in the clients factories with extra cost.
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
